Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage Space

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets all the required specifications. A robust and stable foundation is not only vital for the efficient operation of the hoist but is also critical for the safety of your vehicles and anyone using the equipment. Thorough preparation and strict adherence to installation guidelines can greatly enhance the performance and lifespan of your hoist, making it a valuable addition to your garage.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist itself, significantly reducing the risk of cracking or sinking over time. For those opting for heavier-duty hoists, it is wise to consider a thicker concrete slab, potentially extending to 150mm (6 inches), to ensure optimal performance, stability, and safety during operation.

Step-by-Step Guide to Determining the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a pivotal factor in the safe installation and operation of a car hoist. Numerous factors must be taken into account when assessing the appropriate depth of your slab to guarantee it can adequately support the loads it will encounter during use. A comprehensive understanding of these factors can help you avoid costly mistakes and enhance the overall safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them, making it essential to comprehend the total weight that your concrete floor must support. This assessment involves not only the weight of the vehicle but also the hoist itself, which can add significant load to the floor. Understanding the cumulative weight is crucial for ensuring safety.

A typical passenger vehicle usually weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to incorporate extra weight considerations as a safety buffer to guarantee the structure can accommodate unexpected circumstances.

For most residential garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure both safety and stability during operation. Engaging a structural engineer is a prudent decision, as they possess the expertise to provide personalized advice and assist you in calculating the precise thickness needed based on your specific circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to acknowledge that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular choices among homeowners looking to integrate a car hoist into their garage.

Two-post lifts typically apply pressure at specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This understanding is vital for ensuring the longevity and safety of your installation.

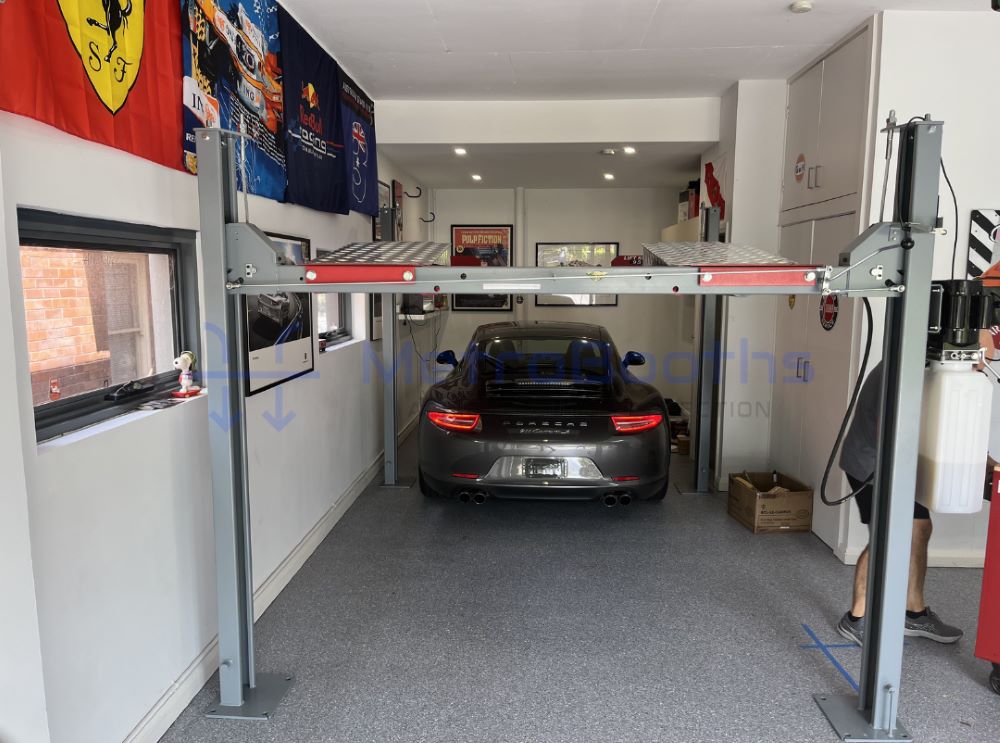

In contrast, four-post lifts tend to distribute weight more evenly over a broader area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. Recognizing these differences plays a significant role in your planning and installation process. Always refer to the manufacturer’s specifications for the hoist you are considering, as they will usually outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for achieving optimal performance and longevity.

Keep in mind that these recommendations serve merely as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift.

The Critical Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as vital as its thickness when it comes to ensuring the durability of your car hoist installation. Stronger concrete can often be utilized at a thinner depth while still providing sufficient support for heavy loads. This is especially relevant in the context of a car hoist installation, where safety and reliability are paramount.

It is advisable to utilize concrete with a compressive strength of at least 25 MPa for car hoist installations. Many industry experts suggest opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. Incorporating reinforcement techniques is crucial for significantly enhancing the durability of your concrete. Adding steel mesh or rebar can greatly improve the overall strength of your concrete floor, allowing for the possibility of using a thinner slab while still ensuring it can effectively support heavy loads during operation.

For the majority of home garages, SL82 mesh serves as a reliable option, providing sufficient strength for most car hoists without incurring excessive costs. This consideration is essential for budget-conscious homeowners. If you have concerns regarding potential cracking, consider integrating fibers into your concrete mix. This addition can assist in minimizing the formation and propagation of small cracks over time, thus enhancing the longevity of your installation.

Critical Installation Factors to Ensure Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of the utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring peace of mind.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Furthermore, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilize steel reinforcing mesh and allow the concrete to cure for at least 28 days. Additionally, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability when the hoist is in operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations for any necessary improvements.

Important Ongoing Maintenance After Installing Your Car Hoist

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could compromise the functionality of your hoist.

It is vital to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to significant structural issues. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, thereby extending its lifespan.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can help prevent costly repairs and ensure safe usage of your hoist.

Consider applying a sealant to the concrete to protect against stains and moisture. Such preventative measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Questions and Answers About Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common queries related to the concrete requirements for various types of lifts to provide clarity and guidance.

What is the Minimum Concrete Thickness Required for a Two-Post Lift Installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. It is always advisable to consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation to ensure compliance and safety.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety during use.

Is It Safe to Install a Car Hoist on a Concrete Floor That Is Less Than 100mm Thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight of vehicles, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation and to comply with safety standards.

What Slab Thickness is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure both safety and stability during use, thereby reducing the risk of accidents and equipment failure.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilized with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring compliance with safety regulations.

What Factors Should Be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety, efficiency, and reliability for your lifting needs.
